价 格
订货量
￥3350.00
30 - 59
￥3200.00
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥60
| 产品特性：冗余电源 | 品牌：新巨Emacs | 型号：R1T2-5120V0H |
| 上市时间：2016 | 货源类别：现货 | 配件类型：冗余电源 |
| 产品尺寸：215x106x41.3mm | 产品重量：3.68KG | 最快出货时间：1-3天 |
| 发票：NO | 售后服务：店面三包 | 包装清单：NO |

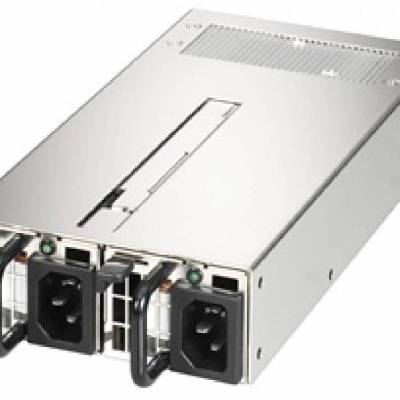

Emacs R1T2-5120V0H ATX 1U 120W Micro Redundant冗余电源(含2个R1T-1120V服务器电源模块)服务器,网安,工控机,工作站,防火墙,路由器,交换机电源,存储柜电源批发Zippy Emacs 新巨 全线工业电源批发及专业电源维修
OUTPUT WATTAGE
120W
BEST SOLUTION FOR
Server
DIMENSION
215x106x41.5(mm)
8.46x4.17x1.63(inch)
INPUT SPEC
VOLTAGE： 90～264VAC FULL RANGE
FREQUENCY： 47～63HZ
INPUT CURRENT：2A (RMS) FOR 115 VAC
1A (RMS) FOR 230 VAC
INRUSH CURRENT：3*** MAX. FOR 115 VAC PER MODULE
70A MAX. FOR 230 VAC PER MODULE
DC OUTPUT SPEC
| Output Voltage | Output Current Min. | Output Current Max. | Regulation Load | Regulation Line | Output Ripple & Noise Max.[P-P] |
| +5V | 0 | 10 | ±5% | ±1% | 50mV |
| +12V | 2 | 10 | ±5% | ±1% | |
| +3.3V | 0 | 10 | ± 5% | ±1% | 50mV |
| -12V | 0 | 0.3 | ±10% | ± 1% | 120mV |
| +5VSB | 0.1 | 3 | ±5% | ±1% | 50mV |
FEATURES
* TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃
* HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 17MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 86%, MEASURED AT NOMINAL INPUT VOLTAGE 230 V AND FULL LOADING(+12V:10A).
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
* REMOTE ON/OFF CONTROL
* POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1Ms
* OVER POWER PROTECTION：110～150% MAX
* OVER VOLTAGE PROTECTION: +5V→5.7~6.5V, +3.3V→3.7~4.1V, +12V→12.8~15V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
* SAFETY: MEET UL&CUL, TUV, CCC
* WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL
* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
Emacs R1T-2300G ATX 1U 300W 冗余电源模块 服务器电源模块Emacs R1T2-5300G2H ATX 1U 300W Micro Redundant冗余电源(含2个R1T-2300G服务器电源模块) Emacs R1T2-5120V0H ATX 1U 120W Micro Redundant冗余电源(含2个R1T-1120V服务器电源模块)服务器,网安,工控机,工作站,防火墙,路由器,交换机电源,存储柜电源批发Zippy Emacs 新巨 全线工业电源批发及专业电源维修
OUTPUT WATTAGE
300W
BEST SOLUTION FOR
Server ,Workstation ,Storage System ,IPC ,Communication ,Networking
DIMENSION
215x106x41.3(mm)
8.46x4.17x1.59(inch)
INPUT SPEC
VOLTAGE： 100～264VAC FULL RANGE
FREQUENCY： 47～63HZ
INPUT CURRENT：*** (RMS) FOR 115 VAC / 2.*** (RMS) FOR 230 VAC
INRUSH CURRENT：1*** MAX. FOR 115 VAC PER MODULE / 30A MAX. FOR 230 VAC PER MODULE(AT 25 DEGREES AMBIENT COLD START FOR EACH POWER UNIT)
PFC: UP TO THE TARGET OF 95%@115V & 90% @230V, FULL LOAD.( ONE NUIT POWER SUPPLY).
DC OUTPUT SPEC
| Output Voltage | Output Current Min. | Output Current Max. | Regulation Load | Regulation Line | Output Ripple & Noise Max.[P-P] |
| +5V | 0 | 16 | ±5% | ±1% | 50mV |
| +12V | 2 | 25 | ±5% | ±1% | |
| +3.3V | 0 | 16 | ±5% | ±1% | 50mV |
| -12V | 0 | 0.3 | ±5% | ±1% | 120mV |
| +5VSB | 0.1 | 3 | ±5% | ±1% | 50mV |
* +5V AND +3.3V Max. POWER: 105W
* TOTAL POWER: 300W (HIGH LINE)
FEATURES
* TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃
* HOLD UP TIME：WHEN POWER SHUTDOWN ALL THE DC OUTPUT VOLTAGE MUST BE MAINTAIN 8mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 87%, MEASURED AT NOMINAL INPUT VOLTAGE 230V AND FULL LOADING
* LEAKAGE CURRENT: 3.5mA. MAX. AT NOMINAL VOLTAGE 240 VAC AND 60Hz
* REMOTE ON/OFF CONTROL
* OVER POWER PROTECTION：110～150% MAX
* OVER VOLTAGE PROTECTION: +5V→5.7~6.5V, +3.3V→3.7~4.5V, +12V→12.8~15V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
* OVER CURRENT PROTECTION: +12V:110~150%
* SAFETY: MEET 60950 UL&CUL, TUV, CCC ,UL/EN/IEC 62368
* WARNING METHOD: FALUT LED, TTL
* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
Emacs R1T2-5300G2H ATX 1U 300W Micro Redundant冗余电源(含2个R1T-2300G服务器电源模块) Emacs R1T2-5120V0H ATX 1U 120W Micro Redundant冗余电源(含2个R1T-1120V服务器电源模块)服务器,网安,工控机,工作站,防火墙,路由器,交换机电源,存储柜电源批发Zippy Emacs 新巨 全线工业电源批发及专业电源维修
G1W2-***10V2V (Rev 1.0) (ROHS) 1010W开关电源 2U服务器 工控机 磁盘柜冗余电源批发(含2个G1W-3A12V (Rev 1.0) (ROHS) 1010W服务器电源模块 ) 防火墙电源模块 开关电源供应器 交换式电源供应器 内装式电源供应器Zippy Emacs新巨全线工业电源批发及专业电源维修
Emacs R1V-2275V (ROHS) 275W伟乐媒体平台DMP900开关电源批发3Y Emacs新巨 1U服务器电源 冗余电源模块 工控机电源 防火墙电源 热插拔开关电源批发及专业电源维修
