价 格
订货量
￥3350.00
30 - 59
￥3300.00
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥60
| 产品特性：1U直流电源 | 品牌：新巨Emacs | 型号： BP1H-5420V |
| 上市时间：2015 | 货源类别：现货 | 配件类型：1U直流电源 |
| 产品尺寸：225x100x40.5mm | 产品重量：1.88KG | 最快出货时间：1-3天 |
| 发票：NO | 售后服务：店面三包 | 包装清单：NO |

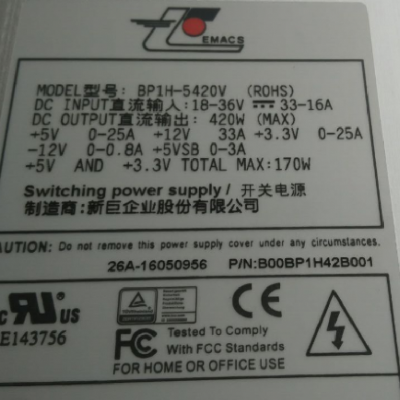

Emacs BP1H-5420V (ROHS) 420W,BP1H-5460V (ROHS) 420W,DP1A-6250P (ROHS) 250W工作站 服务器 工控机 1U直流电源模块,冗余电源模块,热插拔电源模块批发Zippy Emacs 新巨全线工业电源批发及专业电源维修
Server ,Workstation ,Storage System ,Communication ,Networking
Dimension....
225x100x40.5(mm)
8.85x3.94x1.59(inch)
AC Input Spec...
VOLTAGE: 18~ 36 VDC
INPUT CURRENT: 18-36VDC / 33-16AMP (26A AT 24VDC)
INRUSH CURRENT: 50A@ 24VDC
(AT 25 DEGREES AMBIENT COLD START)
DC Output Spec...
| Output VoltageTD | Output Current Min. | Output Current Max. | Regulation Load | Regulation Line | Output Ripple & Noise Max.[P-P] |
| +5V | 0 | 25 | ±5% | ±1% | 50mV |
| +12V | 2 | 33 | ±5% | ±1% | 120mV |
| -12V | 0 | 0.8 | ±10% | ±1% | 120mV |
| +3.3V | 0 | 25 | ±5% | ±1% | 50mV |
| +5VSB | 0.1 | 3 | ±5% | ±1% | 50mV |
* +5V AND +3.3V TOTAL OUTPUT MAX: 170W
* TOTAL OUTPU MAX: 420W
Features...
* TEMPERATURE RANGE: OPERATING 0℃ ~ 40℃ STORAGE -20℃~80℃
* HOLD UP TIME: 1.6mS MINIMUM AT 24V FULL LOAD
* EFFICIENCY: >80% TYPICAL AT 24V FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms
* OVER POWER PROTECTION: 110~150%
* OVER VOLTAGE PROTECTION: +5V→5.6~6.5V, +3.3V→3.6~4.3V, +12V→13.2~15V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
* OVER CURRENT PROTECTOIN: +3.3V→27.5~37.***, +5V→27.5~37.***, +12V→36.3~49.***
* SAFETY: TO MEET UL, TUV, CB
*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
Emacs BP1H-6300F (ROHS) 300W,BP1H-5420V (ROHS) 420W,BP1H-5460V (ROHS) 420W,DP1A-6250P (ROHS) 250W 1U直流电源模块批发Zippy Emacs 新巨全线工业电源批发及专业电源维修
Emacs BP1H-6300F（ROHS）300W 24VDC 20A 1U直流电源1U工控机电源模块1U服务器冗余电源模块Emacs 新巨台式机电源Emacs 新巨工控机电源Emacs 新巨防火墙电源Emacs 新巨交换机Emacs 新巨刀箱电源Emacs 新巨存储柜电源Emacs 新巨服务器电源Emacs 新巨开关电源Emacs 新巨直流电源Emacs 新巨交流电源Zippy Emacs 新巨全线工业电源批发及专业电源维修
225x100x40.5(mm)
8.85x3.94x1.59(inch)
VOLTAGE： DC 20V～28V
INPUT CURRENT：20.0A (RMS) FOR 24 VDC
INRUSH CURRENT：20.0A MAX.
| Output VoltageTD | Output Current Min. | Output Current Max. | Regulation Load | Regulation Line | Output Ripple & Noise Max.[P-P] |
| +5V | 1 | 35 | ±5% | ±1% | 80mV |
| +12V | 1 | 22 | ±5% | ±1% | 120mV |
| -5V | 0.1 | 0.5 | ±10% | ±1% | 120mV |
| -12V | 0.1 | 0.5 | ±5% | ±1% | 150mV |
| +3.3V | 1 | 20 | ±5% | ±1% | 80mV |
| +5VSB | 0.1 | 2 | ±5% | ±1% | 50mV |
+5V AND +3.3V TOTAL OUTPUT MAX : 40A
*TEMPERATURE RANGE：OPERATING -10℃～40℃
* HUMIDITY:OPERATING:20%-95%, NON-OPERATING:10%-95%
* REMARKS:85% IS NORMAL CONDITION AND 95% IS WITH SPECIAL COATING PROCESS
*HOLD UP TIME：1.6mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE
*DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 SECOND
INPUT TO FRAME GROUND 1500 VAC FOR 1 SECOND
*EFFICIENCY：65% TYPICAL，AT FULL LOAD
*POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS
*OVERLOAD PROTECTION：130±20%
*OVER VOLTAGE PROTECTION：+5V→5.5V～7.0V , +3.3V→4.0V～4.5V
*SHORT CIRCUIT PROTECTION：+5V、+12V、+3.3V
*EMI NOISE FILTER : FCC CLASS A, CISPR22 CLASS A
*SAFETY : UL 60950, CSA 22.2 IEC60950, TUV EN60950
*REMOTE ON/OFF CONTROL
THE UNIT SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY).
AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE
AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE
*COOLING :Two 40mm DC FANS
*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
