价 格
订货量
￥4650.00
30 - 59
￥4600.00
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥60
| 产品特性：服务器主板 | 品牌：Supermicro超微 | 型号：X11SCM-F C246芯片支持8代i3和至强E-2100系列双千兆MATX版型服务器主板 |
| 上市时间：2015 | 货源类别：现货 | 配件类型：服务器主板 |
| 产品尺寸：49*26 | 产品重量：2.36KG | 最快出货时间：1-3天 |
| 发票：NO | 售后服务：店面三包 | 包装清单：NO |
Supermicro X11SCM-F C246芯片支持8代i3和至强E-2100系列双千兆MATX版型服务器主板Supermicro X11SCM-LN8F C246芯片 8千兆网口 至强E-2100 MATX服务器主板Supermicro超微工作站Supermicro超微服务器Supermicro超微小型机Supermicro超微工控机Supermicro超微服务器主板Supermicro超微工作站主板Supermicro超微工业电源Supermicro超微内存Supermicro超微CPU处理器Supermicro超微网卡Supermicro超微光纤通道卡Supermicro超微硬盘等整机及配件批发

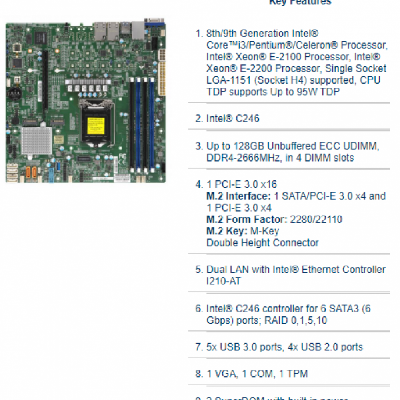

Specifications
| Product SKUsMBD-X11SCM-FX11SCM-F Physical StatsForm FactormicroATXDimensions9.6" x 9.6" (24.38cm x 24.38cm) Processor/CacheCPU8th/9th Generation Intel? Core?i3/Pentium?/Celeron? Processor, Intel? Xeon? E-2100 Processor, Intel? Xeon? E-2200 ProcessorSingle Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDPCores / Cache8 cores, 16 threadsNoteBIOS version 1.0b or above is required to support Intel? Xeon? E-2200 and 9th Generation Intel? Core? i3/Pentium?/Celeron? Processors System MemoryMemory CapacityUp to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slotsMemory Type2666/2400/2133MHz ECC DDR4 SDRAM 72-bitDIMM Sizes4GB, 8GB, 16GB, 32GBMemory Voltage1.2VError DetectionCorrects single-bit errors On-Board DevicesChipsetIntel? C246SATAIntel? C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10IPMIASPEED AST2500Network ControllersDual LAN with Intel? Ethernet Controller I210-ATGraphicsASPEED AST2500 BMC Input / OutputSATA6 SATA3 (6Gbps) portLAN2 RJ45 Gigabit Ethernet LAN portsUSB4 USB 2.0 ports (2 rear + 2 via headers)5 USB 3.1 Gen1 ports(2 rears, 2 via headers, 1 Type A)Video Output1 VGA portSerial Port / Header1 COM Port (1 header)TPM1 TPM Header |
| Expansion SlotsPCI-E1 PCI-E 3.0 x16M.2M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4Form Factor: 2280/22110Key: M-KeyDouble Height Connector System BIOSBIOS TypeUEFI 256MbBIOS FeaturesACPI 6.0SMBIOS 2.7Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0 ManagementSoftwareIntel? Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor? 5, WatchdogSystem Management SoftwareIPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM supportPower ConfigurationsACPI Power Management PC Health MonitoringVoltage+12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBATFAN6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectorsTemperatureMonitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECILEDUID/Remote UID, CPU / System Overheat LEDOther FeaturesACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL Operating EnvironmentOperating Temperature Range0°C ~ 50°C (32°F ~ 122°F)Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)Operating Relative Humidity Range8% - 90% (non-condensing)Non-Operating Relative Humidity Range5% - 95% (non-condensing) |
Parts List
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SCM-F | 1 | X11SCM-F Motherboard |
| I/O Cables | CBL-0044L | 2 | 57.5CM SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00130-0N | 1 | STD I/O Shield for X11SCM-F with EMI Gasket |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SCM-F | 1 | X11SCM-F Motherboard |
| QRG | MNL-2075-QRG | 1 | Motherboard Quick Reference Guide |
| I/O Cables | CBL-0044L | 6 | 57.5CM SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00130-0N | 1 | STD I/O Shield for X11SCM-F with EMI Gasket |
| Optional Parts List | |||
| Name | Part Number | Qty | Description |
| 1U I/O Shield | MCP-260-00131-0N | 1 | 1U I/O Shield for X11SCM-F with EMI Gasket (for standard 1U chassis: SC813M, SC815, SC512, SC514, SC515, SC113) |
| 1U I/O Shield | MCP-260-00132-0B | 1 | 1U I/O Shield for X11SCM-F with EMI Gasket (for standard 1U chassis: SC510, SC504, SC505) |
| TPM security module | AOM-TPM-9670H | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor |
| TPM security module | AOM-TPM-9670V | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
| TPM security module | AOM-TPM-9671H | 1 | SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor |
| TPM security module | AOM-TPM-9671V | 1 | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor |
