| 产品特性：模块化电源 | 品牌：Zippy Emacs | 型号：M1P2-5500V4V |
| 上市时间：2018 | 货源类别：现货 | 配件类型：模块化电源 |
| 产品尺寸：217x85x84(mm) | 产品重量：3.68KG | 最快出货时间：1-3天 |
| 发票：NO | 售后服务：店面三包 | 包装清单：NO |

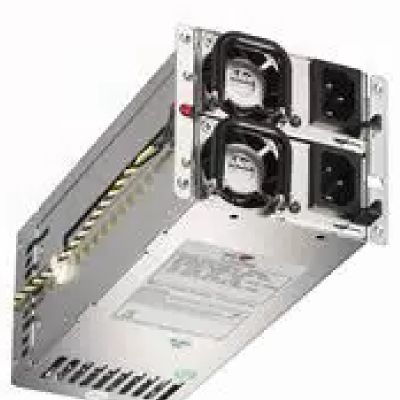

Zippy Emacs M1P2-5500V4V 500W（含2个M1P-2500V冗余电源模块）新巨 工作站 工控机 服务器 存储柜冗余电源销售及电源维修
VOLTAGE：90 ~ 264VDC
FREQUENCY: 47~63HZ
STEADY-STATE CURRENT: 8/4A MAX AT ANY LOW/HIGH VOLTAGE
INRUSH CURRENT: 40/60A @ 115/230VAC
| Output VoltageTD | Output Current Min. | Output Current Max. | Regulation Load | Regulation Line | Output Ripple & Noise Max.[P-P] |
| +5V | 0.5 | 32 | ±5% | ±1% | 50mV |
| +12V | 2 | 41 | ±5% | ±1% | 120mV |
| -12V | 0.1 | 0.5 | ±10% | ±1% | 120mV |
| +3.3V | 0.5 | 25 | ±5% | ±1% | 50mV |
| +5VSB | 0.1 | 3.5 | ±5% | ±1% | 50mV |
* +5V AND +3.3V TOTAL OUTPUT MAX: 170W
* TEMPERATURE RANGE：OPERATING 0℃～40℃, STOREAGE -20℃~80℃
* HOLD UP TIME：16mS IN REGULATOIN LIMIT AT 90VAC INPUT VOLTAGE
* EFFICIENCY(PER SET)：POWER SUPPLY EFFICIENCY TYPICAL >80% AT 230V, FULL LOAD
* OUTPUT PROTECTION: OPP / OVP / SCP / OCP
* REMOTE ON / OFF CONTROL
* BALANCE LOAD SHARING DESIGN
* HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
* ***LATION: BUILT-IN THE POWER MODULE
* FAULTY ALARM METHODS: BUZZER, TTL SIGNAL
* EMI: IEC61000-3-2, FCC, CISPR 22(EN 55022)
* EMS: EN 61000-4-2 ESD, EN61000-4-4 EFT, EN61000-4-5 SURGE
* SAFETY APPROVAL: UL, CUL, TUV, CCC
* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
Zippy Emacs M1P2-5500V4V 500W（含2个M1P-2500V冗余电源模块）新巨 工作站 工控机 服务器 存储柜冗余电源销售及电源维修
