价 格
订货量
￥3650.00
30 - 59
￥3600.00
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥60
| 产品特性：工控机电源 | 品牌：全汉 | 型号：FSP300-70MP MHG2-6300P |
| 上市时间：2018 | 货源类别：现货 | 配件类型：全汉医疗设备电源 |
| 产品尺寸：150mm x 140mm x 86mm | 产品重量：1.86KG | 最快出货时间：1-3天 |
| 发票：NO | 售后服务：店面三包 | 包装清单：NO |

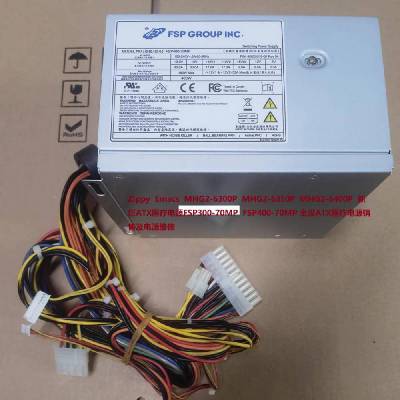

FSP300-70MP 可替代MHG2-6300P MHG2-6400P ATX 工控机电源
FSP300-70MP FSP400-70MP ATX12V EXP12V 全汉 医疗设备电源 医疗仪器电源 彩超电源 交换式电源供应器 开关电源供应器 工控机电源 工作站电源 服务器电源批发SPI FSP全汉工业电源批发及专业电源维修
Fortron 300 Watt ATX Netzteil FSP300-70MP PS2 Netzteil 80mm Lüfter MEDICAL
Type:PS/2 Leistung:300 Watt Lüfter:8 cm Ma?e:150mm x 140mm x 86mm
Anschlüsse:
24pin ATX (20+4 geteilt)
2x SATA Strom
1x P4 Stecker
1x 8pol EPS
5x 4pol Molex Strom
1x 4pol Molex Strom FDD
1x 6pin Strom
Original FSP400-70MP, 9PA4002516 FSP 400W Medical Grade Power Supply
FSP400-70MP 400W ATX12V EXP12V医疗设备电源 交换式电源供应器 开关电源供应器 工控机电源 工作站电源FSP400-702US FSP300-702US FSP300-702UJ FSP300-601UD等SPI FSP 全汉工业电源批发及专业电源维修
尺寸：140 x 150 x 86 mm
應用系統：For Industry Use
瓦特數：400
PFC：Active
主要特征
·Low Ripple & Noise
Output over voltage protection
Short circuit protection on all outputs
Resetable power shut down
INTERNAL 8 cm fan
Low Noise Design at full load
*** burn-in under high ambient temperature(50°C)
Vacuum-impregnated transformer
MTBF:100K hours at25°C
*** Hi-pot tested
Line input fuse protection
complies with EN61000-3-2
AC input full range
產品規格
INPUT SPECIFICATIONS
Input voltage: 90 to 265 VAC
Input frequency: 47 to 63 Hz
Input current: 8.0A/115Vac, 4.0A/230Vac
OUTPUT SPECIFICATIONS
Over voltage protection: +3.3V: +3.7V - +4.5V
+5V : +5.7V - + 6.5V
+12V: +13.3V - +15.6V
Short circuit protection: The short circuit on any DC output shall not cause
any damageto the power supply, including the
primary fuse.
GENERAL SPECIFICATIONS
Hold-up time: 20ms at 115Vac/60Hz, 20ms at 230Vac/50Hz.
Efficiency: 68 %/ 115V; 68%/ 230V (full load)
MTBF: 100,000 hours at full load at 25℃
ENVIRONMENTAL SPECIFICATIONS
Operating temperature: 0℃to +50℃
Storage temperature: -20℃to +80℃
Relative humidity: 5% to 95% non-condensing
FSP400-70MP 400W ATX12V EXP12V医疗设备电源 交换式电源供应器 开关电源供应器 工控机电源 工作站电源FSP400-702US FSP300-702US FSP300-702UJ FSP300-601UD等SPI FSP 全汉工业电源批发及专业电源维修
FSP400-702US电源参数
| 400W | |
| 200mm (L) × 100 mm (W) × 70mm (H) | |
| Efficiency Level | 80 Plus Gold |
| Altitude | 5000M |
| Effciency | 92% 230VAC |
| Voltage Regulation | +3.3V, +12V, +5V, +5SB: ±5% -12V, -5V: ±10% |
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 115V@ 6.3 Amps-rms maximum 230V@ 3.0 Amps-rms maximum |
| Hold-up time | 115V/60Hz 16mSec. Minimum@*** Load, 230V/50Hz 16mSec. Minimum@*** Load |
| Ouput Voltage Regulation | +3.3Vdc output : +3.5 Vdc minimum, + 4.8Vdc maximum +5Vdc output : +5.5 Vdc minimum, + 7Vdc maximum +12Vdc output : +13.4 Vdc minimum, + 16Vdc maximum |
| Ripple & Noise | 115V-rms/230V-rms 5V 20ms Maximum 115V-rms/230V-rms 12V 20ms Maximum |
| Over current protection | 3.3V:50mV p-p 5V:50mV p-p 12V1:120mV p-p 12V2:120mV p-p -12V:120mV p-p 5Vsb:50mV p-p -5V:100mV p-p |
| Temperature Range | Operating : 0 to +50℃ Storage :-20 to +80℃ |
| Humidity | Operating : 85% to % RH, Non-condensing Storage : 95% to % RH, Non-condensing |
| MBTF | The power supply have a minimum predicted MTBF(MIL-HDBK-217) of 100,000 hours of continuous operation at 25℃, maximum-output load, and nominal AC inout voltage |
| CE,FCC,TUV,CCC | |
Output Voltage and Current Rating
+3.3V+5V+12V1+12V2-12V-5V+5VsbRipple-Noise(R-P) mVRegulation Load %Output Max.(A)Output Min.(A)
| 50mV | 50mV | 120mV | 120mV | 120mV | 100mV | 50mV |
| ±5% | ±5% | ±5% | ±5% | ±10% | ±10% | ±5% |
| 16A | 16A | 18A | 18A | 0.*** | 0.2A | 3A |
| 0.3A | 0.3A | 0.*** | 0.*** | 0A | 0A | 0A |
Notes
5V, 3.3V, 12V, -12V Will have the regulation to 10% when all load take off.
The +3.3V and +5V total output shall not exceed 120 watts.
The total output shall not exceed 400 watts
-5V is optional
